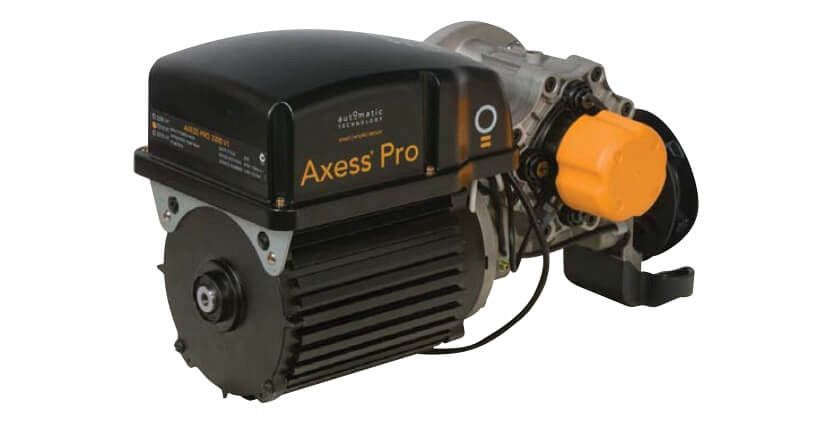

Axess Pro Series 3300 Roller Door Opener

SIMPLE, RELIABLE & COST-EFFECTIVE SHUTTER AUTOMATION

The Axess® Pro Series 3300 range provides options for cost-effective automation of large shutters up to 50m2 in size. Utilising hard-wired 415V power with contactors, these units are designed to be simple to install, and incredibly reliable.

Using economical 3-phase 415V hard-wired powerheads with contactor-driven automation, the range includes 1 and 1.5 HP output power options. Both variations can be controlled either by a simple manual console, or the sophisticated logic control system with LCD screen, integrated time clock and TrioCode™128 technology.

POWERFUL MOTOR

A powerful 3-phase motor means this opener is both consistent and reliable, and we back this up with a two-year guarantee.

LOGIC CONTROLS WITH LCD SCREEN OPTION

The optional integrated logic control system with LCD screen provides scalable functionality, allowing the operation of the opener to be customised specifically to the site’s needs.

QUIET, HEAVY DUTY GEARBOX

The high stepdown ratio gearing, immersed in a breatherless oil bath inside the cast aluminium gearbox, provides power and reliability with minimal noise.

OPTION OF SECURE & RELIABLE TRANSMITTERS

The TrioCode™128 transmitter system ensures secure and reliable home access. It transmits on three frequencies to defeat radio interference and uses a 128-bit encryption protocol (with trillions upon trillions of random codes*) for the ultimate in security.

*340,282,366,920,938,463,463,374,607,431,768,211,456 codes

Optional Logic Control System

Features LCD screen, customisable menu system, service indicator, 24-hour clock, stores 511 TrioCode™ transmitter codes and integrates additional inputs. Easy plug in.

Interfaces with Axess® Pro series products.

Includes 2x TrioCode™128 transmitters.

Optional Lockable Control Box

Logic control console is mounted inside a sturdy enclosure with keyed lockout. Features separate Open, Close and Emergency Stop buttons. Allows Auto, Manual and Off operation.

Warranty

It’s important to have peace of mind, reliability and security when you make an industrial purchase.

This Dominator Axess Pro 3300 Series Shutter Motor comes with a 2-year, Industrial Warranty.

*Terms & Conditions Apply, Regular Servicing Required. 
