Dominator Georgian

The raised pattern design of the Dominator GeorgianTM Garage Door is produced from heavy gauge steel to produce a refined elegant look for entry point to your garage and home.

The ‘almost square’ raised pattern design available in either a smooth or woodgrain texture produces a sophisticated feel that complements the more traditional looking home.

A visually detailed door choice with almost square, (370mm H x 535mm W) raised pressings. The Georgian works well with more traditional styled colonial homes.

The number of pressings across your door is determined by the overall width of the opening and the resulting amount is spaced out evenly.

Designed to be operated with an automatic garage door opener, we recommend Dominator Openers for Georgian Sectional Garage Door installations.

The ‘Single Press’ range of window options are recommended for the Georgian sectional door as their size and position across the door will match the remaining pressings. Glazing with acrylic or toughened glass is available.

Manufactured by roll-forming 0.6 BMT COLORSTEEL® and then pressing the detail into the panel, the Georgian will provide old-world charm to the front of your home.

SIZE RANGE

Available in Daylight Opening Sizes (DLO) from 1825mm to 3440mm in height and from 2400mm to 6600mm in width.

Additional sizes may be available, please discuss your requirements with your local Dominator Sales Person.

SMOOTH & QUIET

Dominator sectional garage doors will provide you with quiet, smooth operation.
Features include:

• Factory fitted, muntins and end styles ensure consistent panel tolerances for trouble free operation.
• Nylon wheels with ball bearings.

EASY OPERATION

Your Dominator sectional door will continue to be easy to open and close, with features such as:

• Ball bearing wheels with two-piece roll-formed track, allowing the door to run easily and smoothly during opening and closing.
• Full sized hinges reduce stress loading for consistent operation.

Profile

Georgian Single Pressed Panel Profile

Georgian ‘Single Press’ profile – Roll-formed Panel with ‘Square’ Pressings.

Manufactured from 0.6 BMT COLORSTEEL®.

Fixed Sized Pressings of 370mm H x 535mm W – Quantity is width dependant. (2.4m wide panel shown.)

Colours

The Georgian sectional door is available in an extensive range of Pre-painted COLORSTEEL® or Powder Coated options.

Sectional Door Pre-painted Steel Colour Options

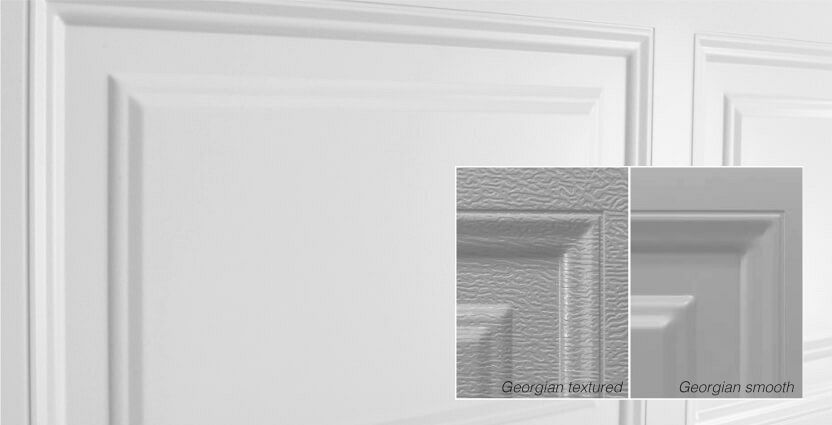

Finishes
    • Woodgrain Fexture
    • Smooth Finish

    Note: The process of roll forming sheet steel may cause irregularities in flat panel surfaces. Smooth finishes can highlight these irregularities under certain lighting conditions and viewpoints.
    Once installed, the woodgrain texture will continue to mask any minor dents and scratches inflicted throughout the life of the door.

Windows

Note: The ‘Single Press’ range of window options is recommended for the Georgian sectional door as their size and position across the door will match the remaining pressings. Glazing with acrylic or toughened glass is available.
Some door widths create an uneven number of pressings across the panel – this will limit the window options available – please discuss with your Dominator Dealer.

Double Pressed Styles
Double Pressed Panel Window Styles

Single Pressed Styles – Recommended for Georgian
Single Pressed Panel Window Styles

Headroom

Doors are provided for standard headroom (350mm) situations, unless otherwise specified.

Rear torsion and Intermediate Low Headroom systems are available as optional extras. Please discuss Low Headroom requirements with your Dominator Sales Person.

Recommended Clearance Requirements:

• Standard Headroom – 320mm
• Standard Headroom with opener – 350mm
• Low Headroom with opener – 200mm (Opener Recommended)
• Sideroom – 140mm
• Backspace with opener – 3550mm (Door height up to 2300mm)

Weather Protection

The garage today is used to store many different valuable objects, and in some cases is converted into another room, so weather protection is an important feature of any garage door. The Dominator sectional door features:

• Pre-painted steel, to stand up to the harsh New Zealand climate.
• Bottom weatherseal which is soft and pliable, helping to stop leaves and rain coming in under the door.
• Mohair option available to reduce gaps between the door and the door jamb, to keep out the weather.

Durability

Your Dominator sectional door will continue to operate like new, with features such as:

• Springs designed to exceed the Aus/NZ Standard for garage doors – 20,000 cycles.
• Factory fitted, muntins and end styles ensure consistent panel tolerances for trouble free operation.

Warranty

It’s important to have peace of mind when you make a purchase, that’s why your Dominator sectional door comes with the following warranty:

  • 5 years for steel door curtain & associated labour, 1 year for surface coating, locking mechanism & all other components & associated labour.
  • Industrial/Commercial use – 1 year for all components & labour.
